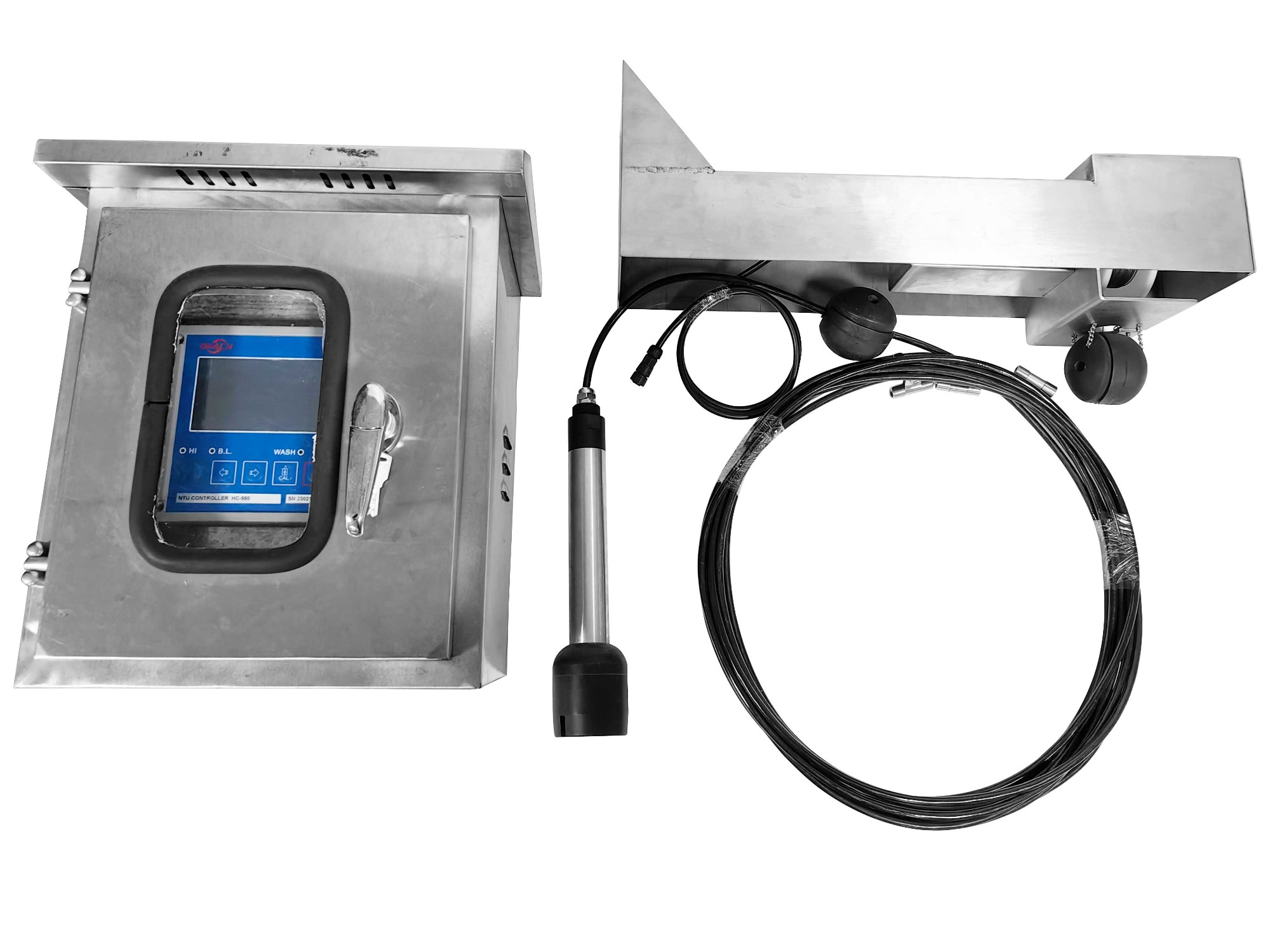

Online sludge interface meter is an online intelligent liquid turbidity detector, which uses imported components and photosensitive elements, based on the latest 90-degree light refraction analysis technology, advanced production technology and surface mounting technology. It has interface operating system, measurement data storage, test curve analysis, 485 communication and other functions. It can be widely used in continuous monitoring of turbidity values in solutions such as chemical fertilizers, metallurgy, environmental protection water treatment projects, pharmaceuticals, biochemistry, food, swimming pools, aquaculture and tap water.
Sludge measurement range: 0.3-9.8m (maximum water depth 10m)
Water depth measurement range: 0-10.00m
Detection accuracy: ≤±0.5% FS
Repeatability: ≤±1% FS
Analog output: 4~20mA output (load <300Ω)
Digital output: RS-485 Modbus-RTU communication protocol
Protection level: IP65 (sensor probe)
Display screen: 4.3-inch touch TFT display
Data storage: store 1000 sets of test data
Curve display: display the curves of the latest 100 test data
Power supply: AC 220V 50/60Hz
Product power consumption: ≤15W
Working temperature: -20~60℃
Storage temperature: -20~70℃
Installation method: wall-mounted, column-mounted, bracket-mounted
