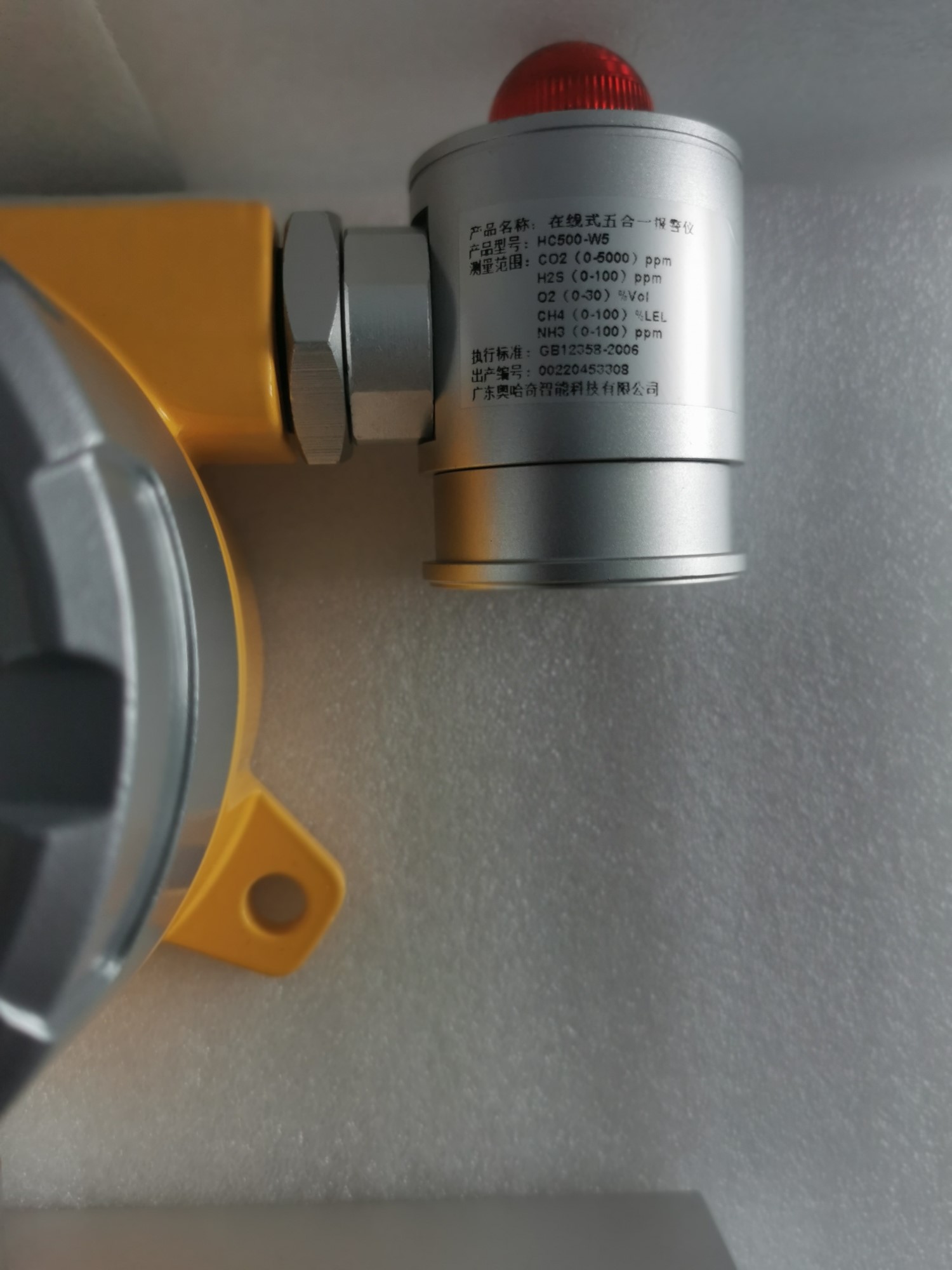

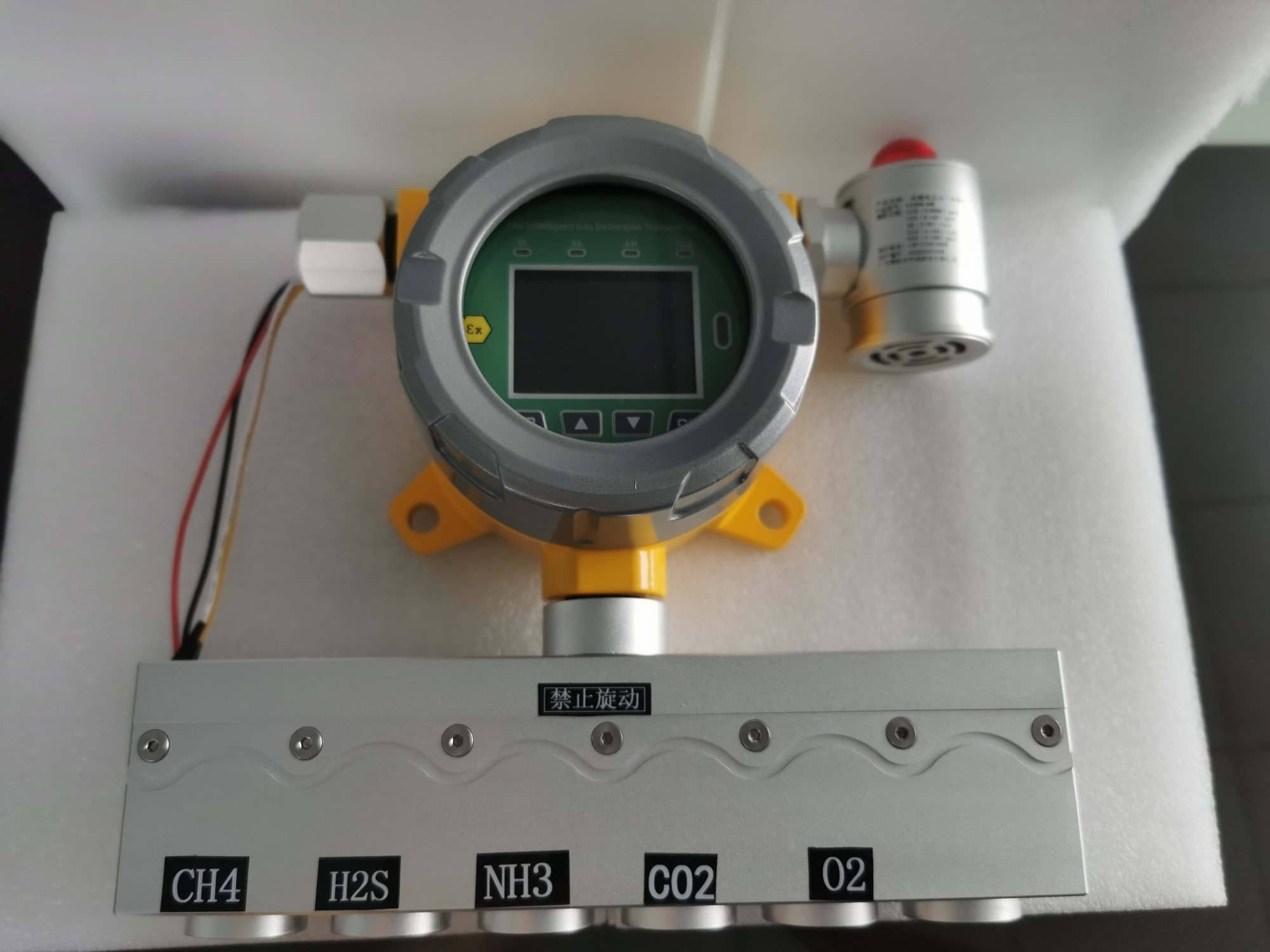

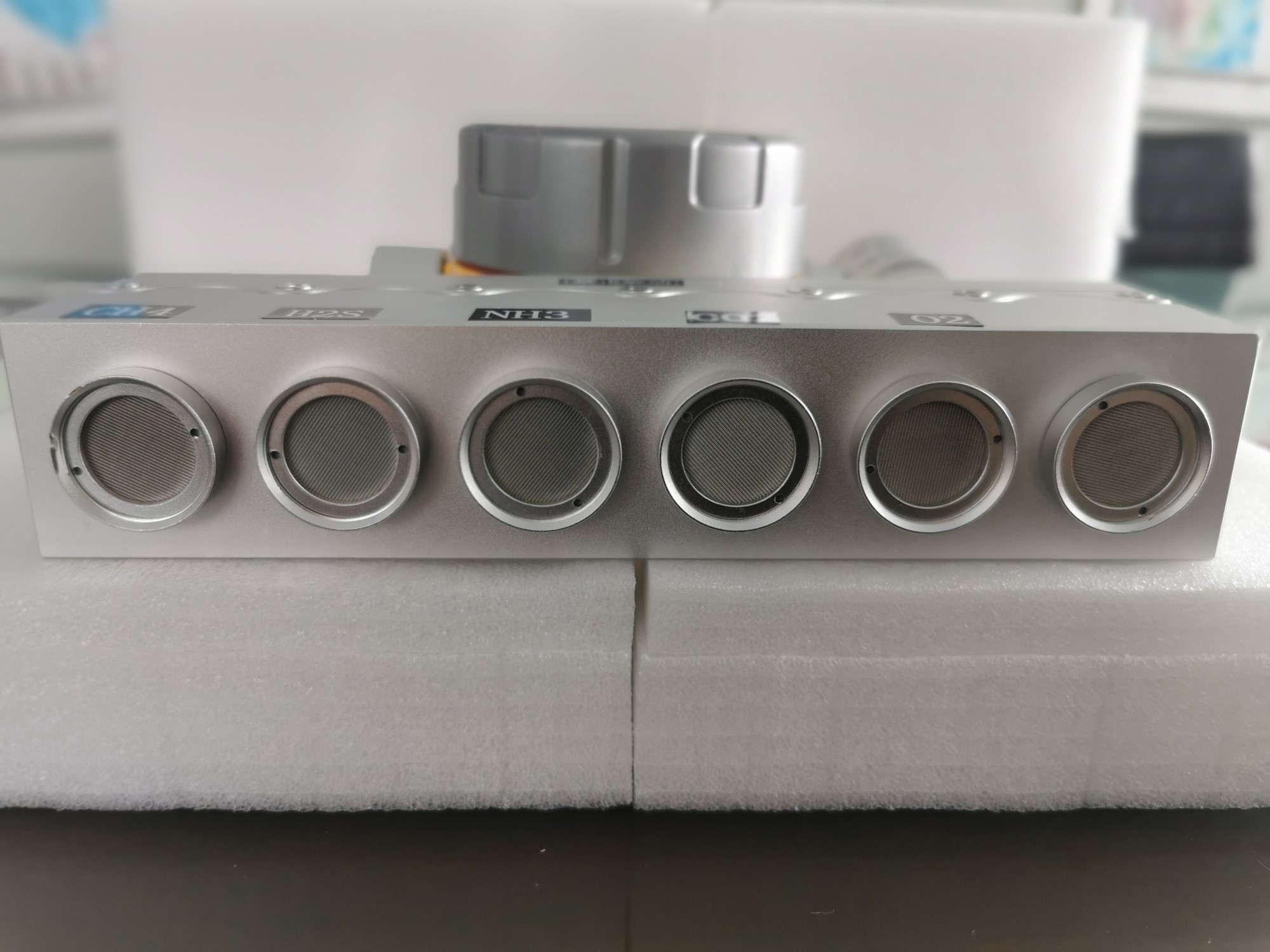

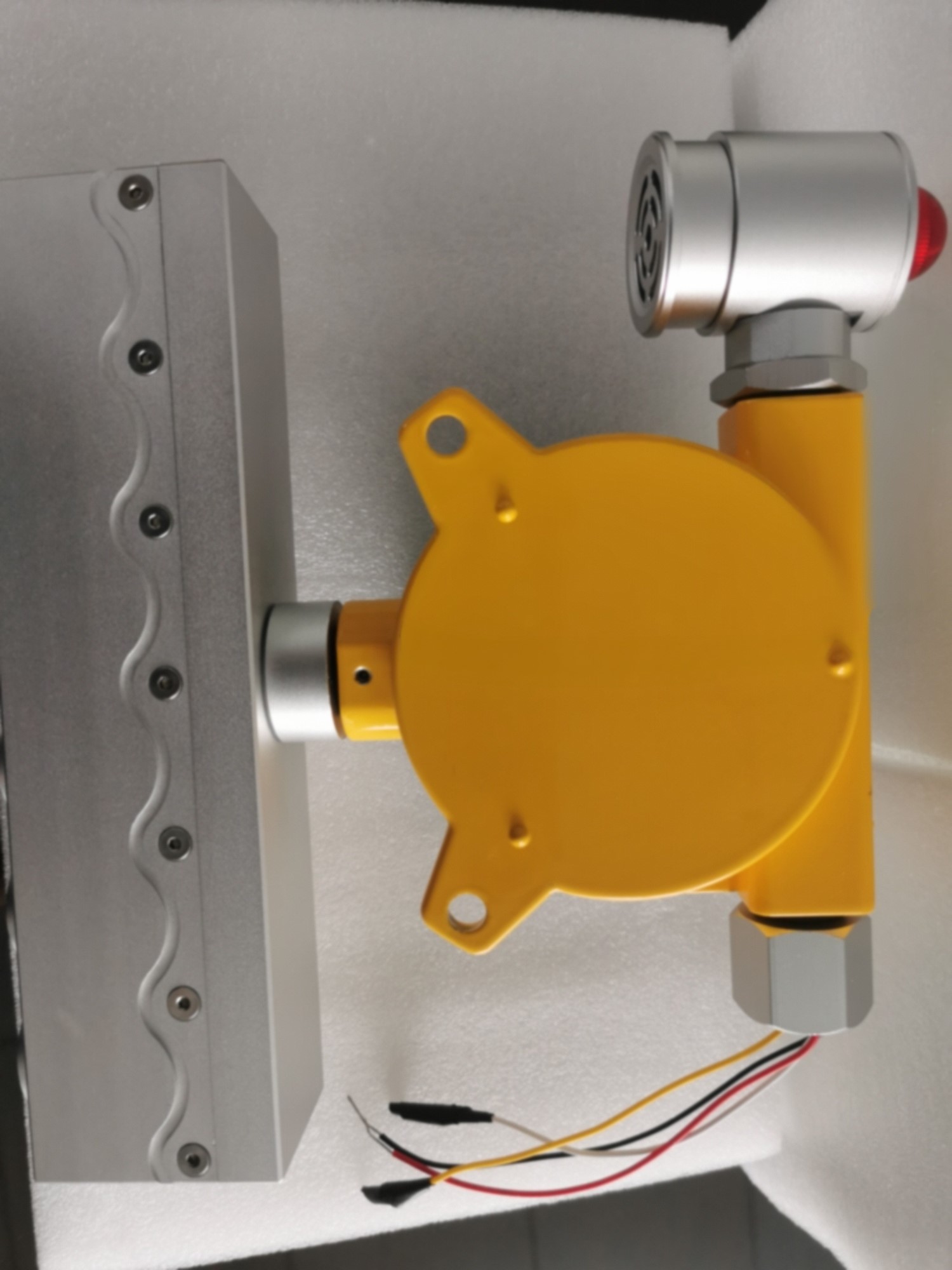

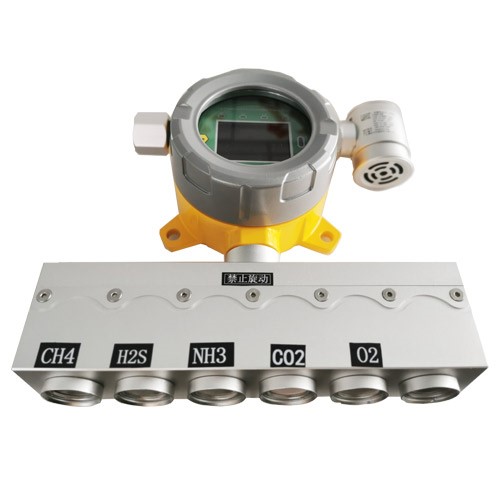

Online Gas Detector

Detection gas: combustible gas/toxic gas

Detection principle: catalysis, electrochemistry, infrared principle, etc

Detection accuracy: ≤±3%

Measuring range: optional

Resolution: Optional

Linear error: ≤±1%

Response time: ≤20s (T90)

Zero drift: ≤±1% (F.S/ year)

Operating temperature: -30~60℃

Reply time: ≤20s

Repeatability: ≤±1%

Working humidity: ≤95%RH, no condensation

Explosion-proof certification: CNEx16.0547

Protection level: IP66

Working pressure: -30kpa ~100Kpa

Power supply: 24VDC (12~30VDC)

Link thread: M40x1.5mm

Weight: 1.5kg (net weight of instrument)

Shell materials | : die casting aluminum + sandblasting oxidation/fluor-carbon painting, explosion-proof anticorrosion

Model output: 4-20mA signal, RS485 signal, standard two sets of relays, passive contact, capacity 220VAC 3A/24VDC 3A
