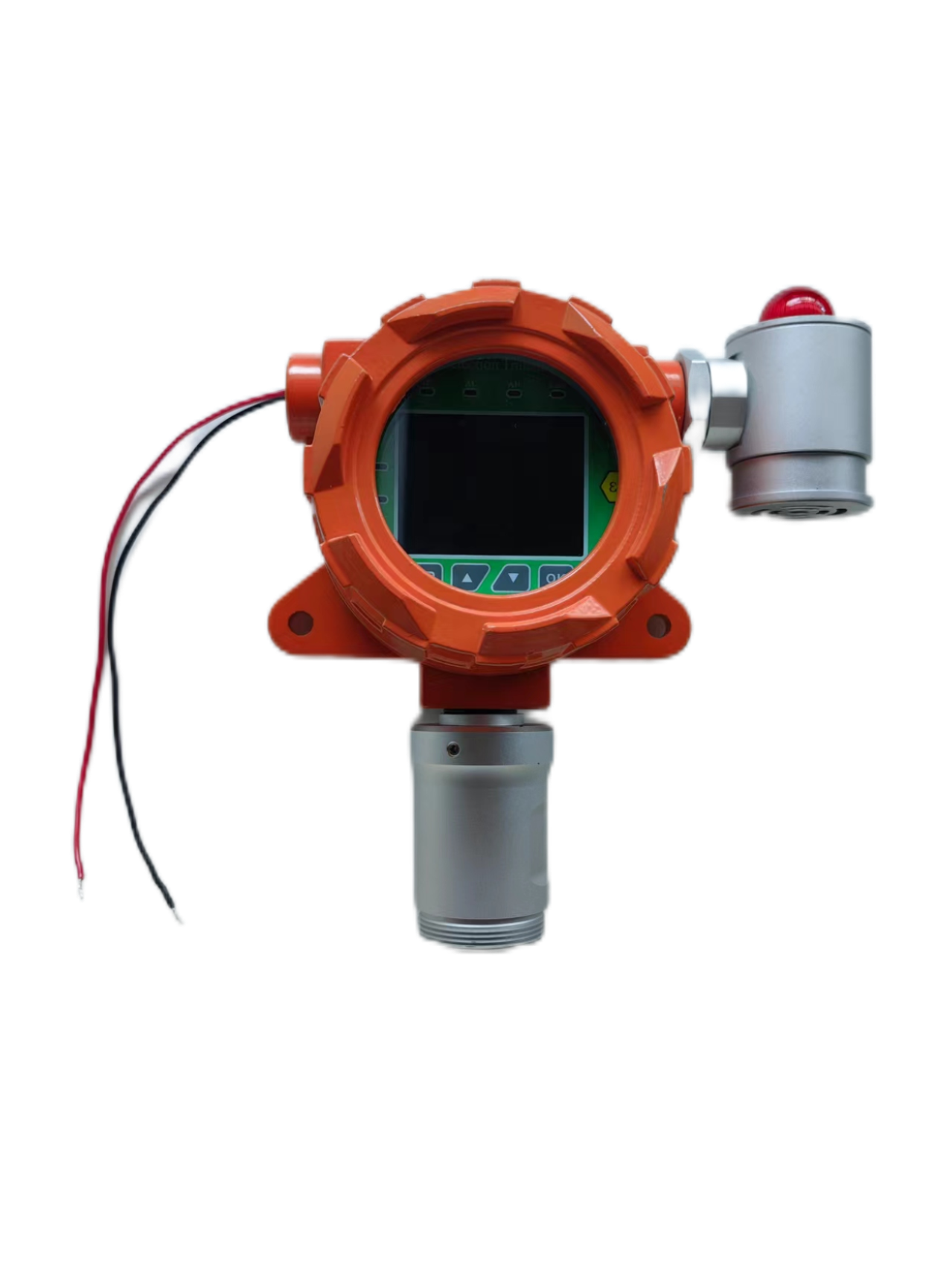

This gas detector uses advanced catalytic, electrochemical and infrared technologies and is designed for the detection of combustible and toxic gases. It has the characteristics of high accuracy, fast response and strong stability, can operate reliably in harsh environments, and is widely used in industrial fields such as petrochemicals, coal mining, and pharmaceuticals. The product supports a variety of signal outputs and relay configurations, and explosion-proof certification and high protection levels ensure safe use in hazardous locations.
Detection gas: combustible gas/toxic gas
Detection principle: catalysis, electrochemistry, infrared principle, etc.
Detection accuracy: ≤±3%
Measurement range: optional
Resolution: optional
Linear error: ≤±1%
Response time: ≤20s (T90)
Zero drift: ≤±1% (F.S/year)
Working temperature: -30~60℃
Reply time: ≤20s
Repeatability: ≤±1%
Working humidity: ≤95%RH, no condensation
Explosion-proof certification: CNE x16.0547
Protection level: IP66
Working pressure: -30Kpa~100Kpa
Working power supply: 24VDC (12~30VDC)
Connection thread: M40x1.5mm
Weight: 1.5kg (net weight of the instrument)
Case material: die-cast aluminum + sandblasting oxidation/fluorocarbon paint, explosion-proof and corrosion-proof
Model output: 4-20mA signal, RS485 signal, standard two sets of relays, passive contacts, capacity 220VAC 3A/24VDC 3A
