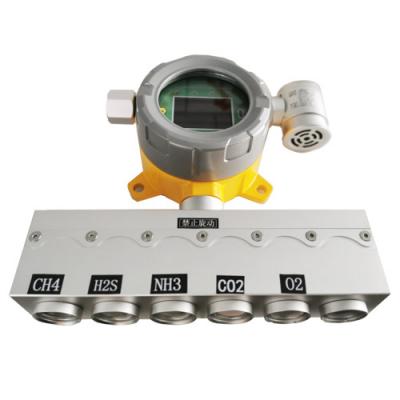

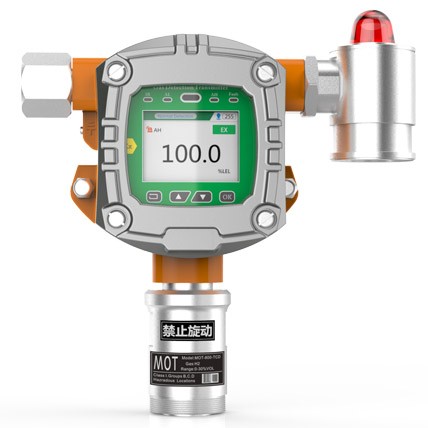

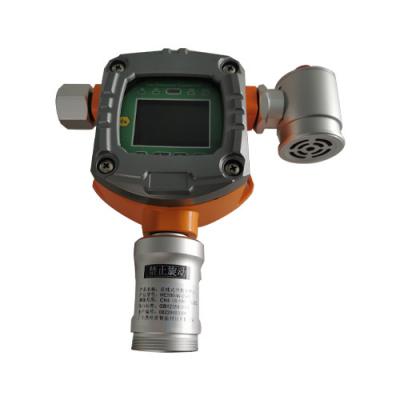

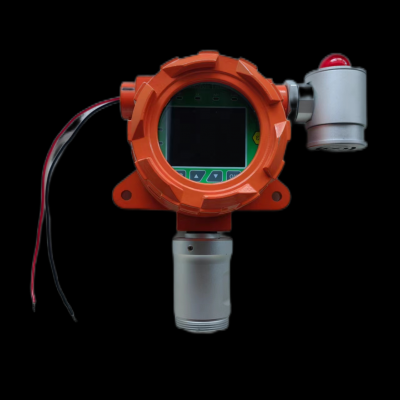

Our fixed odor detection instrument integrates high-precision sensors to ensure data accuracy. The error detection feature continuously calibrates the device for reliable real-time measurements. The range drift detection function provides consistent results during repeated measurements of the same gas concentration, while zero-point drift detection ensures accurate readings in the absence of gas. With rapid response capability, the device quickly alarms and transmits data during gas leaks. It also features automatic self-check to maintain optimal performance.
Product type: fixed gas detection alarm
Sampling method: diffusion
Gas types: combustible gas, oxygen, carbon monoxide, ammonia (optional)
Detection principle: electrochemical principle
Measurement range: 0-100%LEL, 0-25%vol, 0-100ppm, 0-100ppm
Resolution: 0.01%
Response time: ≤30S (T90)
Detection error: ≤±3%FS or ±10% (depending on the specific sensor)
Alarm mode: 95dB (@30cm) alarm sound, high alarm, low alarm, TWA, STEL multiple alarm types sound, light, vibration alarm, high and low alarm values can be set through the host computer or calibration platform
Battery life: more than 2 years under normal use, no need to charge, battery can be replaced
Explosion-proof level: Ex ia IIC T4 Ga / Ex ia I Ma, suitable for detection in Zone 0, Zone 1, and coal mine areas
Protection level: IP66/IP68
Interface display: gas name, concentration unit, measurement value, power
Working temperature: -20℃～50℃
Working humidity: 0-95%RH (non-condensing)
Whole machine warranty: 1 year
